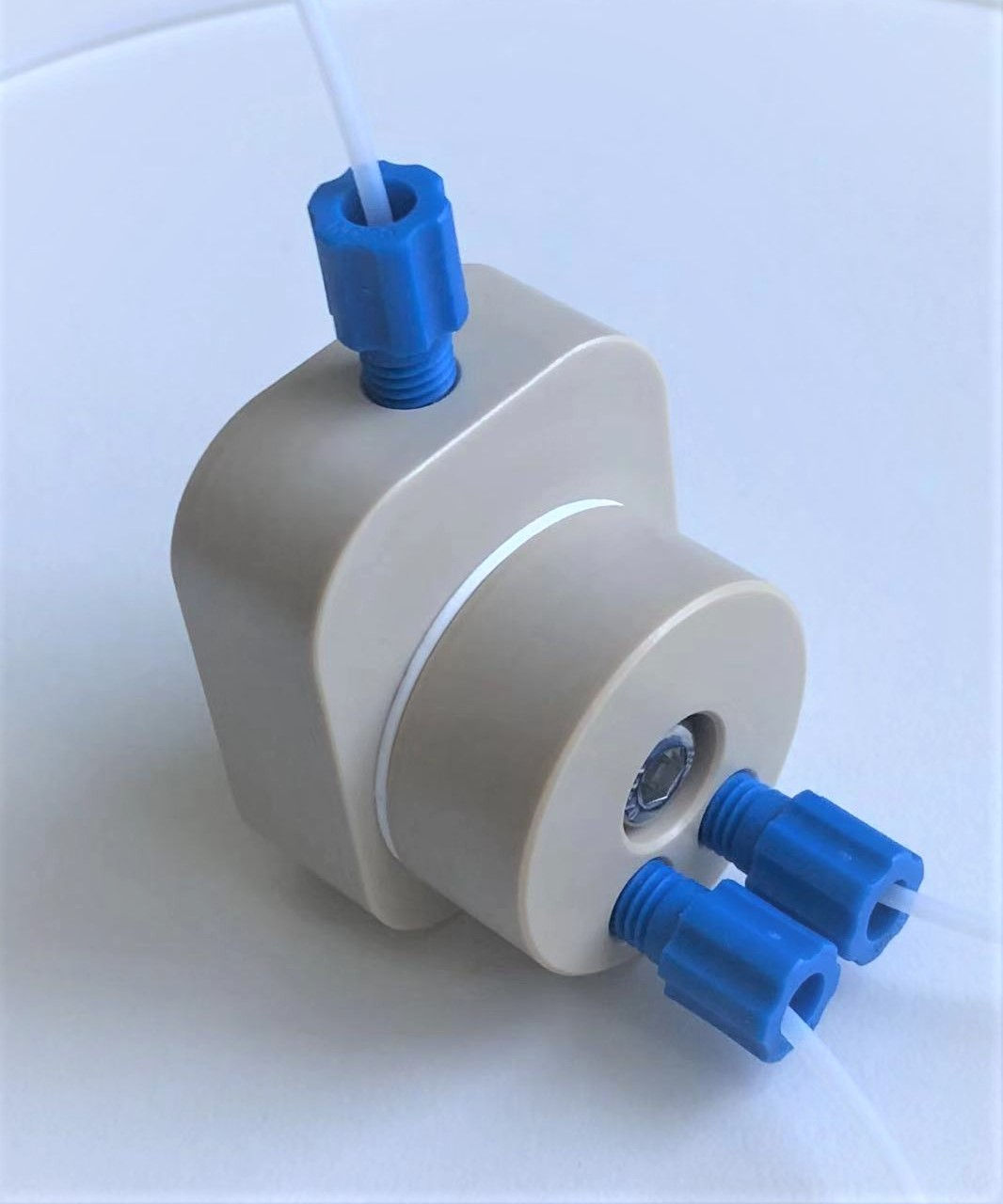

Inline Bubble Trap — 25 µL, PEEK, EZMount
Vents free gas and air bubbles out of a flowing liquid line without interrupting flow. Bubbles rise to a hydrophobic 10 µm PTFE membrane and escape to atmosphere — passively, or faster with vacuum on the dry side. Removes free bubbles only, not dissolved gases.

Best for: low flow and precious media below ~1 mL/min — organ-on-chip, single-cell perfusion, long culture runs. Smallest hold-up volume we offer.

Specifications
Internal volume — 25 µL
Materials — PEEK body, 10 µm PTFE membrane installed, autoclavable
Ports — 1/4"-28 UNF, inlet and outlet interchangeable
Vacuum — to −14.5 psi
Base — EZMount — rectangular, with mounting holes
Chemical compatibility — most organic solvents; verify for your solvent

⚠️ Mount it vertically — both fluid ports at the lowest point, air vent facing up. Bubbles can only reach the membrane if they can rise to it. Horizontal or vent-down mounting is the most common reason a trap seems not to work.

Not included: fittings and tubing — see flangeless fittings 1/4"-28, PTFE tubing, Luer adapters.

Replacement membranes: 10 µm PTFE, 5/pk — non-sterile or sterile.

In stock in San Jose, CA · ships in 1–2 business days · international shipping available.
